FW-05
folansi
FW-05
| Name: Geothermal heat pump | |||||
| Model | Unit | FW-05 | FW-06 | ||
| Unit function | Rated heating capacity | kw | 18 | 22 | |
| BTU | 61433 | 75085 | |||
| Hot water supply | T/h | 0.37 | 0.46 | ||
| Rated input power | kw | 3.7 | 4.58 | ||
| Rated heaing input current | A | 7.4 | 9.16 | ||
| COP | 4.86 | 4.8 | |||
| Max running current | A | 12 | 16 | ||
| Power | V/Ph/Hz | 380-415V/50Hz | |||
| Noise | dB(A) | ≤55 | ≤58 | ||
| Dimension | Width | mm | 680 | 680 | |
| Deepth | mm | 795 | 795 | ||
| Height | mm | 720 | 720 | ||
| Weight | kg | 145 | 155 | ||
| Throttle typ | Electronic expansion valves | ||||
| Refrigerate | R417A,R407C,R410A,R22 | ||||
| Max outlet water temp | 60℃ | ||||
| Circulation structure | Compressor | Type | Sanyo, Copeland,Daikin,Scroll | ||
| Qty | 1 | 1 | |||
| Locked-rotor current | A | 60 | 65 | ||
| Security protect functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | ||||
| Water source side heat exchange | Type | Efficient tube in shell heat exchanger /plate heat exchange | |||
| Water flow | m3/h | 2.36 | 2.93 | ||
| Water pressure down | kPa | 12 | 12 | ||
| Pipe size | Inch | 1 | 1 | ||
| Hot water side heat exchange | Type | Efficient tube to tube heat exchanger /plate heat exchange | |||
| Water flow | m3/h | 2.99 | 3.17 | ||
| Water pressure down | kPa | 12 | 12 | ||
| Pipe size | DN | 1 | |||
Rated heating working condition: heat source side heat exchnage inlet water temp 15℃, hot water side heat exchnage beginnig of temp 15℃,end of temp 60℃

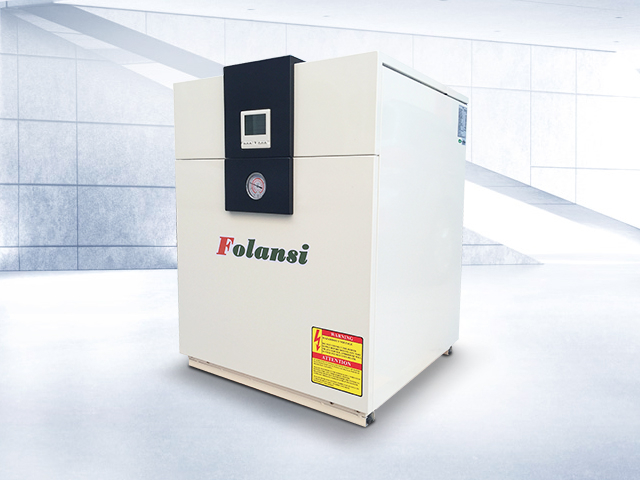

Inverter Geothermal heat pump for heating
A geothermal heat pump or ground source heat pump (GSHP) is a central heating and/or cooling system that transfers heat to or from the ground.It uses the earth as a heat source (in the winter) or a heat sink (in the summer). This design takes advantage of the moderate temperatures in the ground to boost efficiency and reduce the operational costs of heating and cooling systems, and may be combined with solar heating to form a geosolar system with even greater efficiency.
Main features
1. High performance hermetic scroll compressor, Panasionic comprssor;
2. Shell and tube type condenser and evaporator, high heat exchange efficiency;
3. Modular design, compact size, factory assembled, save installation space;
4. Intelliigent controller, failure checking, balance operation, timer on/off,etc
5. Famous brand thermal expansion valve , ensure better performance.
6. Complete safety devices: high/low pressure switch, overcurrent protection, overload protection,overheat protection,
reverse&lack phase protection, short flow protection,etc;
7. Refrigerant : R410A or R32
8. Capacity range:5kW~124kW
